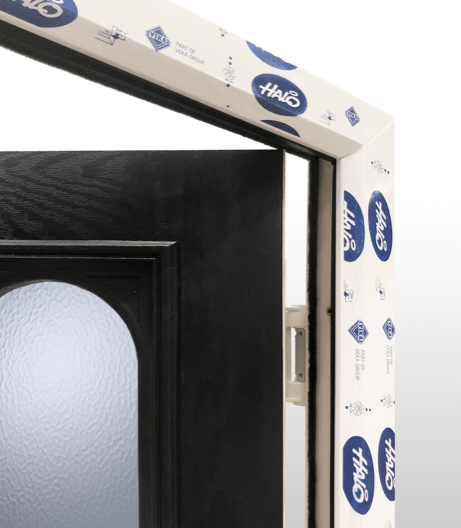

Door frame profile details
We have expanded our range again! We have partnered with Veka UK Group to ensure our customers are getting the best possible options. Veka has been designing and supplying profiles for over 50 years, meaning that Door-Stop customers will benefit from the experience, reliability and security that comes ‘as standard’ with such a long-established and industry-leading supplier.
We have taken advantage of Veka's experience and expertise by introducing the Veka Sculptured profile to our range.
The right options for every job
As a dedicated door manufacturer, we make sure that the door that you buy from us is tailored to best suit what you do. Which is why we offer the stylish Veka chamfered and sculptured range of profiles, which have proven highly popular in both trade and commercial markets to achieve a modern or traditional finish.
.jpg){kind=logo} |
Veka Chamfered | Veka Sculptured |
|---|---|---|
| Min height (Full PVC No Sill) | 2009mm | 2009mm |
| Max height (Full PVC No Sill) | 2119mm | 2119mm |
| Min height (Low PVC No Sill) | 1991mm | 1991mm |
| Max height (Low PVC No Sill) | 2101mm | 2101mm |
| Min height (Wheelchair Threshold No Sill) | 1970mm | 1970mm |
| Max height (Wheelchair Threshold No Sill) | 2080mm | 2080mm |
| Min height (MDS25 Threshold) | 1974mm | 1974mm |
| Max height (MDS25 Threshold) | 2084mm | 2084mm |
| Min width | 802mm | 802mm |
| Min width (slim cottage door) | 650mm | 650mm |
| Max width | 1022mm* | 1022mm* |
| Brush colour | Black | Black |
| Seal type | Gasket | Gasket |
| Reinforcement | Recycled | Recycled |
| Energy rated | ||
| Extension options (mm) | 15/30/45 | 15/30/45 |
| PAS024 | ||
| Secured by Design option | ||
| Top box options | ||
| Side panel options | ||
| White lead time | 5 day | 5 day |
| Woodgrains | 10 day | 10 day |
| * Except Door61 |
